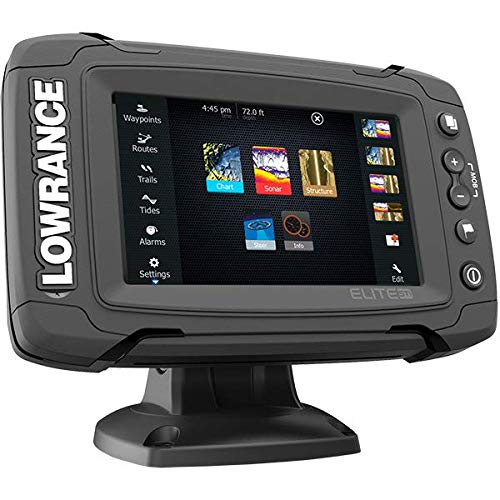

Lowrance Elite 5 Ti Touch Combo with 83/200/455/800 HDI Transom Mount Transducer

Elite-5 Ti Touch Combo – 83/200/455/800 HDI Transducer Features: ◉ CHIRP Sonar, StructureScan & DownScan Imaging:Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan requires optional TotalScan transducer ◉ TrackBack:Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location

Elite-5 Ti Touch Combo – 83/200/455/800 HDI Transducer

Features:

◉ CHIRP Sonar, StructureScan & DownScan Imaging:Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan requires optional TotalScan transducer

◉ TrackBack:Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint

◉ Internal GPS antenna:Highly accurate, built-in GPS antenna plus a detailed U.S. map

◉ Optional chart upgrades:Optional Americas chart upgrades include Lake Insight and Nautic Insight PRO and HD, Navionics HotMaps Premium and Fishing Hotspots PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N

◉ Built-in wireless connectivity
◉ microSD card slot
◉ Quick Release bracket

Specifications:

Sonar

◉ DownScan Imaging at 455 kHz: Max 300′ / 91M
◉ SideScan Imaging at 455kHz: Max 300′ /91M to each side
◉ CHIRP Sonar High Range/200 kHz: 1000′ / 305M
◉ CHIRP Sonar Med Range/83 kHz: 1000′ / 305M

Available Sonar Frequencies

◉ Low/Mid/High CHIRP
◉ 50/83/200 kHz Broadband
◉ 455/800 kHz SideScan/DownScan imaging
◉ Depth Alarm:Yes
◉ Shallow Alarm:Yes
◉ Temperature Readings:Yes
◉ Transducer Type:Multiple Selections Lowrance and Airmar

GPS Navigation

◉ Routes:100
◉ Waypoint Storage:3000
◉ Plot Trails:Up to 100 trails with up to 10,000 points per trail
◉ GPS Antenna Type:10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
◉ GPS Alarms:Yes
◉ Custom Mapping:Lake Insight and Nautic Insight PRO and HD, Insight Genesis, Navionics Gold and HotMaps Premium, Fishing Hotspots PRO (US Models) and Jeppessen C-Map Max-N
◉ Networking:NMEA 0183 and NMEA 2000

Comes with

◉ Elite 5 Ti
◉ Mounting Bracket (QRB-5)
◉ Power Cable (000-0127-49)
◉ Med/High/455/800 khz Transom Mount Transducer(000-12570-001)

Product Features

  • Elite-5 Ti Touch comes with Mounting Bracket (QRB-5), Power Cable (000-0127-49), Med/High/455/800 khz Transom Mount Transducer(000-12570-001)
  • High resolution display. Easy-to-use touchscreen. Low/Mid/High CHIRP. 50/83/200 kHz Broadband. 455/800 kHz SideScan/DownScan imaging
  • CHIRP Sonar, StructureScan and DownScan Imaging. TrackBack. Internal GPS antenna
  • Optional chart upgrades. Built-in wireless connectivity. microSD card slot. Quick Release bracket
  • 100 Routes. 3000 Waypoint Storage. Up to 100 trails with up to 10,000 points per trail. NMEA 0183 and NMEA 2000
