LUCKY Portable Fish Finders Wired Transducer Kayak Fish Finder Kit Portable Depth Finder LCD Display for Kayak Boat Ice Fishing

Use the portable fish finder in normal waysFix the float position in advance. Toss the transducer into the water. For kayak fishing1. Attach the Side-Scan Adapter to the boat hull using the mounting tabs; 2. Break though the hull of a boat. Place the sonar sensor against the hull bottom 1 inch underwater. For ice

Use the portable fish finder in normal ways
Fix the float position in advance. Toss the transducer into the water.
For kayak fishing
1. Attach the Side-Scan Adapter to the boat hull using the mounting tabs;
2. Break though the hull of a boat. Place the sonar sensor against the hull bottom 1 inch underwater.
For ice fishing
1. You should clear the snow on the ice layer. Make sure the surface is smooth enough. Put the boat depth finder directly on ice layer to detect fish distribution in purpose of selecting a place to drill a hole
2.There should be no air between the sensor and the ice and no air between ice layer and the underwater either. Otherwise, the portable depth finder will not work properly.
3. Cut a hole through the ice and put the transducer directly in the water. Enjoy the fishing gear.

Specification
1. 2inch TN/ANTI-UV LCD Display
2. Blue LED Back lighting
3.1.81inch diameter transducer sensor
4. Detect Depth Range: 3ft~328.08ft under sensor
5. Sensor coverage range: 45 degrees beam angle in 200Khz
6. Sensor Operating Temperature: -14°F to 122°F(-10°C-50°C)

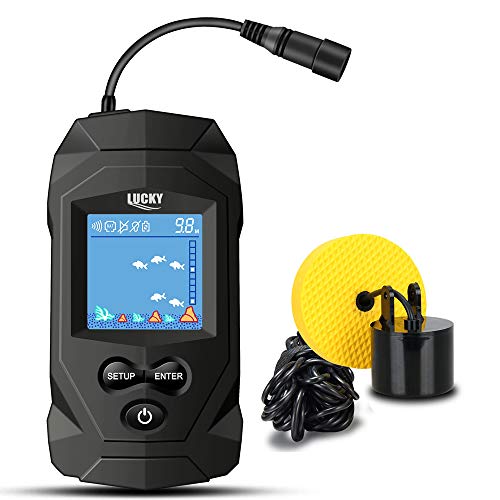

Package Included
1. Fish Finder Display
2. Transducer with 25ft cable
3. Removable Transducer Float with Rubber Stopper
4.Transducer Side-Scan Adapter
5. Stainless Bolt and Wing Nut
6.Neck Strap
7.User Manual

Warm Tips
1. The fish lures and the fish smaller than 3.94inch can’t be detected by the portable fish finder.
2. This model of portable depth finder doesn’t distinguish big fish and small fish normally. However, it can show big fish and small fish by adjusting sensitivity to high level through sensitivity setting.
3. The transmitter (transducer) is waterproof design but the receiver (fish finders display) is not. Keep the fishfinders in dry condition after fishing to extend its product life.

Product Features

  • Lucky New Arrival Fishing Fish Finders: This portable fish finders detects and shows fish location with water depth, short & tall weeds, sand & rocks. The color LCD display of the kayak fish finder is visible under sunshine. Backlight enable the fishing sonar for night fishing.
  • Muti Functional Fish Finders: Five assistant settings are available on this portable fish finders. Adjustable sensitivity; battery save mode; backlight mode; fish and fish school alarm and battery indicator.
  • Detecting Depth: The portable fish finders works with wired transducer with a 25ft cable wire. The detecting depth range of the fishing sonar is from 3ft(1m) to 328ft (100m) with 45°detecting degree. The depth unit can be switched from “M” to “FT” if long press enter button for 5 seconds.
  • Long Working Time Fishing Fish Finder: This portable depth finder uses 4 AAA batteries. Normally this fish finders for kayaks can continue working for 4-5hours with brand new batteries. If you select battery saving mode, the kayak fish finder will keep working more time.
  • Wide Applications Portable Depth Finder: This fish finder for kayaks is designed to be omnipotent. You can use this portable depth finder for various fishing occasions like boat fishing, kayak fishing, sea fishing, ice fishing and so on.
